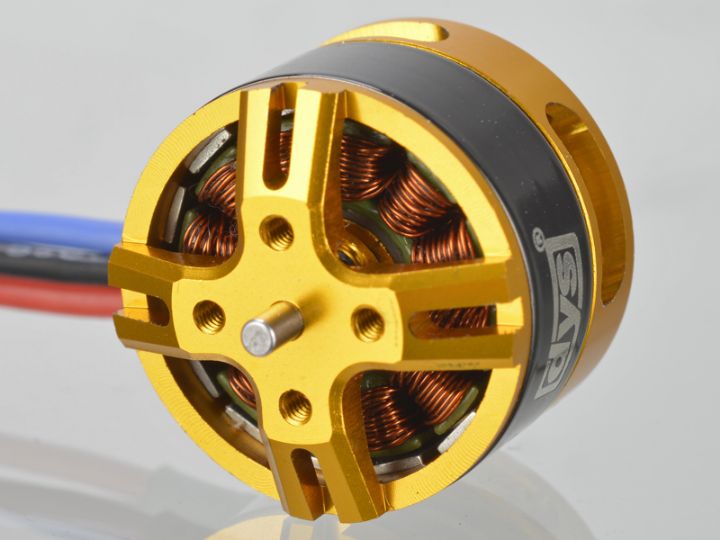

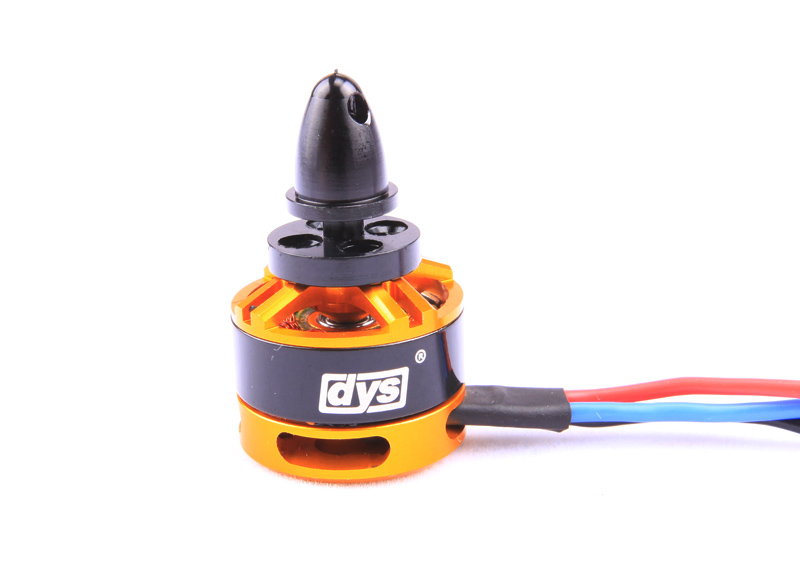

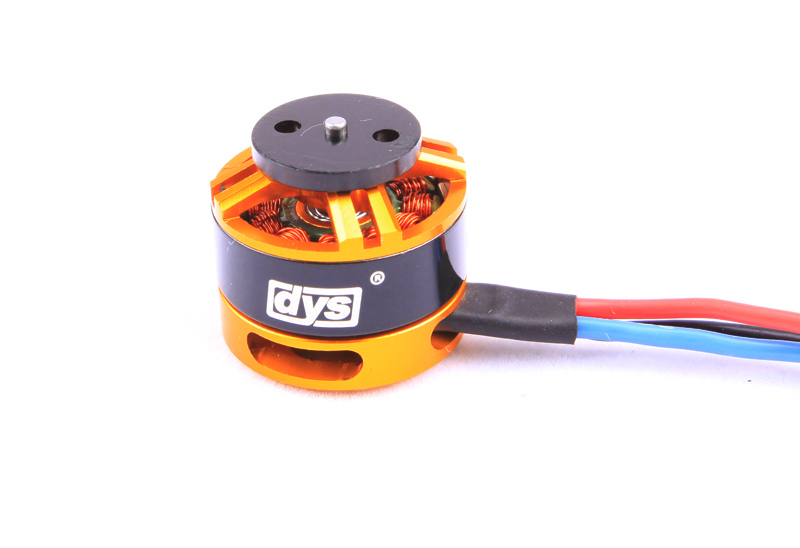

    DYS BE1806 / 2300KV 2-3S Outrunner Brushless Motor for Mini Multicopters

    Specifications:
    KV..............................................................................................................2300
    Configu ration....................................................................................NP

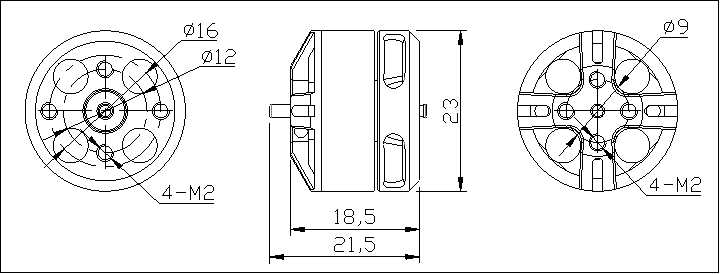

    Stator Diameter....................................................................................23mm
    Stator Length..........................................................................................18.5mm
    Shaft Diameter.......................................................................................2.0mm
    Motor Dimensions(Dia.*Len)...............................................Φ23×18.5mm
    Weight (g)...................................................................................................18g
    No.of Cells(Lipo).....................................................................................2-3S
    Max Continuous current(A)............................................................7.6A
    Max Continuous Power(W)...........................................................84.4W




    Item No.   NO LOAD ON LOAD       LOAD TYPE
    BE1806-13
    (2300KV)
    VOLTAGE CURRENT SPEED CURRENT Pull Power EEP Battery/prop
    V A rpm A g W %
    7.4 0.6 17060 6.5 390 48.1  8.1  LiPoх2/6X2
    7.6 521 56.2  9.3  LiPoх2/7X2.4
    11.1 0.6 25590 6.5 390 72.2  5.4  LiPoх3/5X3
    7.6 521 84.4  6.2  LiPoх3/6X2

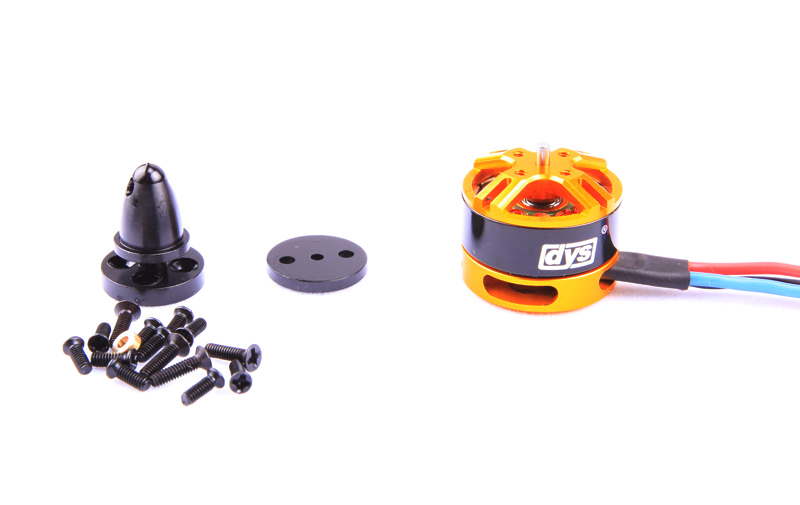

    Includes:
    1 x motor
