CRIUS MWC MultiWii SE v2.5 Flight Control board bluetooth LED display w/NEO-6M GPS

SKU : E-1879591964
3/5(0 reviews)

  • Quantity: Unit(s)
  • Bulk Order Discount:
      Quantity
      Price/Unit
      More

    • Item Description
    • Questions & Answers
    • Payment & Shipping

    Item specifics

    Use:
    Vehicles & Remote Control Toys
    is_customized:
    Yes
    For Vehicle Type:
    Airplanes
    Brand Name:
    CRIUS
    Tool Supplies:
    Cutting
    Material:
    Metal
    Remote Control Peripherals/Devices:
    Receivers
    RC Parts & Accs:
    Radio Systems
    Four-wheel Drive Attributes:
    Assemblage
    Model Number:
    SE V2.5
    Use:
    Vehicles & Remote Control Toys
    Upgrade Parts/Accessories:
    Radio Systems

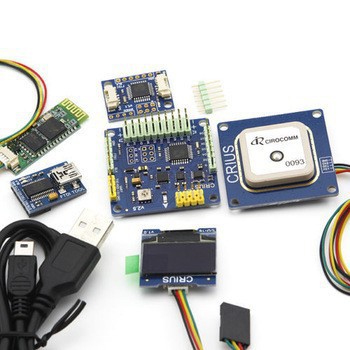

    CRIUS MWC MultiWii SE v2.5 Flight Control board bluetooth LED display w/NEO-6M GPS

    Features: • Small size,35x35mm mounting holes • 6 PWM input channels for standard receiver or PPM SUM receiver • Up to 8-axis motor output • Supported 2-axis gimbal and auto trigger controll • FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display • I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar • Ultra low noise 3.3V LDO voltage regulator • ATMega 328P Microcontroller • MPU6050C 6 axis gyro/accel with Motion Processing Unit • HMC5883L 3-axis digital magnetometer • BMP085 digital pressure sensor • PCA9306DP1 logic level converter Other • Dimension: 40mmX40mm • Height: 11.6mm • Weight: 9.3g • Fixing hole spacing: 35mm (It can be changed to 45mm by CRIUS Distribution Board) • Hole diameter: 3.1mm   NEO-6 V3.0 GPS NEO-6M Module for APM MWC Pirot Rabbit Flight Controller   Features: - U-blox NEO-6M GPS module - 5Hz update rate - 32k I2C EEPROM for save configuration - Build in 25 x 25 x 4mm ceramic patch antenna - LNA and SAW chip - 3.3V LDO low noise regulator - UART (TTL) port with EMI protection - 3V lithium Rechargeable battery - Power and fix indicator LEDs - Reverse polarity protection for input power   Default parameter -Standard NMEA protocol - Baud rate : 9600 - Nav rate : 1Hz - TIMEPULSE (fix LED) rate : 1Hz   Other - Dimension: 40 x 40 x 9mm - Weight: 16.4g/18.6g (include cable) - Hole diameter: 3.1mm   I2C-GPS NAV Module Features: ·All GPS data available via the I2C bus to connect to 328P Multiwii FC ·A LED on board show GPS 3D Fix status ·ATMega 328P Microcontroller ·2 Molex 1.25mm 4Pin socket for GPS receiver and FC ·2 port for ISP and FTDI Other ·Dimension: 20mmX30mm ·Height: 5mm ·Weight:2.4g/5g(include cable) ·Hole diameter: 3mm CRIUS CO-16 OLED Display Module MWC Multiwii Bluetooth parameter debug module / Bluetooth adapte     Features: ·For Multiwii FC Configuration use with Android MultiWiiConfiguration ·UART TTL socket MultiWiiConfiguration function ·Read and Write PID ·Setting switch for AUX1 and AUX2 ·Monitor receiver signal and FC output signal ·Monitor All sensors and GPS signal ·Cablibration Magnetometer and Accelerometer ·Save and read profile Default parameter ·Baudrate : 115200 ·Module name : CRIUS_BT ·Pair code : 0000 Other ·Dimension: 15mmX37.5mm ·Height: 5mm ·Weight:2.2g/3.9g(include cable) ·Hole diameter: 3mm Features: - High brightness, self-emission, high contrast ratio - monochrome 128×64 dot - 5V I2C interface - Used for telemetry and debug MultiWii FC. - Dimension: 27mmX27mm - Height: 6.5mm - Weight:3.7g/4.9g(include cable) FTDI USB-TTL This is a basic breakout board for the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general serial applications. The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any Arduino board that has the reset pin brought out to a 6-pin connector. Download the manual: MWC Combo Manual 100% Brand New and Full Packing   Package include: 1x MWC V2.5 SE Flight Control board 1x I2C-GPS NAV Module 1x - U-blox NEO-6M GPS module 1x CO-16 OLED Display Module 1x Bluetooth module 1x FTDI USB-TTL
